Accuracy Full Electric SERVO CNC Press Brake 200t 3200mm Automatic Bending Machine for Sheet Metal Plate Processing

slider stroke (mm) : 140

automatic level : Semi-Automatic

throat depth (mm) : 320

machine type : Torsion Bar

length of working table (mm) : 3200

width of working table (mm) : 1550

dimension : 3400*1550*2450mm

place of origin : Anhui

brand name : GENUO

material / metal processed : Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum

automation : Automatic

extra services : End Forming

weight (kg) : 6800

motor power (kw) : 7.5

key selling points : High-accuracy

warranty : 2 Years

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, Motor, Pump, Gear, PLC

Product name : Hydraulic NC Press Brake Machine

Material : Metal Steel Sheet

Color : Customer Choose

Function : Sheet Metal Metal Bending

Model Number : WC67Y-125T/3200

Main Motor : STJ

Hydraulic System : XinLI

Manufacturer : GENUO

Controller : E200 ESTUN

Certification : ce

Price : $22,400/sets 1-2 sets

Contact Now

Products Description

Accuracy Full Electric SERVO CNC Press Brake 200t 3200mm Automatic Bending Machine for Sheet Metal Plate Processing

Machine Description

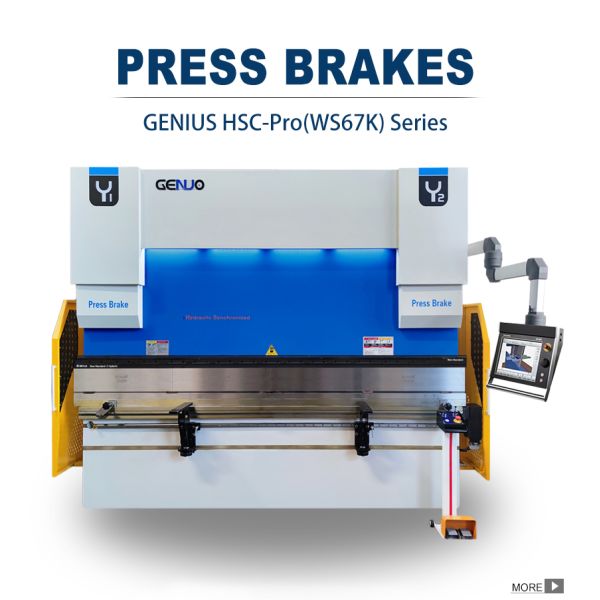

GENUO Genius Pro HSC series CNC press brake based on proven design Genus series.

Stainless steel oil tank and more integrated hydraulic system make the bending machine

have longer hydraulic oil service life and fewer pipelines. The excess overflow of the

hydraulic system is greatly reduced, the bending efficiency is improved, and the

phenomenon of excessive oil temperature in continuous operation is avoided.

Based on the powerful main servo motor pump control technology, we can precisely

control the movement of the ram using a minimum amount of oil and energy.

Genius Pro CNC Press Brake provides enegry saving up to 50% compared with

Conventional hydraulic press brakes.With advanced motion technologies and

impressively quiet with the most flexible features and options, the Genius pro is one

of the choices in creating complex parts. 40T~200T optional.

Standard Equipment					Feature
◆Delem DA-66T CNC Control					◇Delem DA-69T, CYBELEC ModEva 19T, ESA S675,
◆Mono block welded rigid to deflection and high tensile steel frame					◇4 axis and 6 axis back gauge options
◆Delta main servo motor hybrid pump control system					◇Bending tools management cabinet or trolley
◆High precision Y1,Y2 axis closed-loop synchronized feedback					◇CNC sheet follower front support device
◆Accurate heavy-duty X,R axis back gauge system					◇Lasersafe or lasercheck angle detection feedback device
◆Auto Motorized crowning system/Hydraulic cylinder crwoning					◇6 aixs or 7 axis Bending Robot Cell options
◆WILA type punch and 4V/2V/1V Dies					◇Special heights, Daylight, Throat Depth are available
◆DSP laser front guard and movable sliding front support					◇40~200 Tons and 4~20ft Bending Lengths options
◆BOSCH Rexroth hydraulic system,GIVI linear encoder					◇Single/Tandem/Trio optional
◆EMB ferrule type pipe connector, NOK sealing rings

To Learn More Click Here >>

▼Master servo pump control technology

The hydraulic press drive ePrAX ®modular adapted to

the special requirements of drives for CNC press

brakes. All required components can be assembled

according to the modular principle. The exible

arrangement allows an optimal use of the mounting

space. For each actuator a servo motor takes over

the control of power stroke and fast stroke as well

as bending force. High dynamics with significant

energy savings and shorter cycles, the operating

noise of the press brake is drastically reduced

by each adapted speed.

▼Rigid Frame Construction

GENUO have vast experience with R&D and designing components to very tight tolerances with SOLID-

WORKS CAD modelling techniques,and that CAE,

ANSYS, SOLID-WORKS used as the method to

analyze the linear static construction, stressand

deformation for machine frames. So for complicated

structures, highly complex loadings and transient

modelling.

The foundation of all GENUO press brakes is a solid,

monoblock frame made from high-yield steel.

▼Linear Encoder Feedback

German Bosch Rexroth integrated

"hydraulic system block", hydraulic transmission
with high reliability , integrated hydraulic system
can effectively alleviate the problem caused by
leakage of hydraulic fluid.

▼Proportional Control

The deformation is measured accurately and

compensated by feedback method.
The accuracy can be achieved uM level.

Establishing the right back gauge for your projects will allow for increased part production

and precision.From intricate parts which typically require more axes to large quantities

that require more time and therefore increased cost, the correct back gauge for each job

is essential to lowering costs per part which ultimately benefts your bottom line.

GENUO technicians are happy to assist you with any questions you may have on your

project requirements.

GENUO provides a variety of tooling solutions to meet your different production needs.

Not only that, we are also experts in the field of bending tools. If you have any special bend,

our engineers will customize special tools for each workpiece, which greatly expands your

press brake function and revenue. To help greatly improve your productivity and business benefits.

To confrm a constant bend angle, manual or CNC crowning is essential which will offset

potential deviations and allow for possible tooling wear to maintain parallel contacting

surfaces.

CNC crowning systems allow the press brake control to be pre-programmed with machine

characteristics and defection data. Adjust the calculate and setting accordingly for different

characteristics of different materials.

LASER Safety Guards

DSP LASER protects the press brake

operator from the danger of crushing

that can take place accidentally

between the moving part of the

machine and the fixed one.

It assures to carry out the machine working cycle penalizing its

execution time in the least.

Auto Tool Clamping System

WILA'S state of the art Clamping

systems can offer the ultimate

solution when it comes to efficiently

changing tools both hydraulical and

Pneumatic.

Accuracy and ergonomicshave been

coordinated to realize the highest

level of productivity.

CNC Sheet Follower

This CNC bending support suitable

for all kinds of large sheet metal, especially thin metal sheet.

Perfect to maintain synchronization

with the sheet during the bending process.which lightens the operators work moving heavy pieces, improves

bending efficiency and reduces

operator risk.

Angle Measuring System

Automatic angle measuring system

can measures workpieces and

regulates the angle, regardless of

material variations.Reduce your

materials consumption.

Shorten your machining times to

get work started more quickly.

Bending Robotic Cell

In industry 4.0. Thanks to Genuo's

fully automated bending cell

solution.Realize unmanned reliable

bending production around the clock.

All risks associated with part handl

-ing during bending are faced by the

robot and not by the operator.

More safe and efficient

Product Paramenters

Model	Nominal Pressure (kn）	Bending Length （mm）	Columns Distance （mm）	Ram Strokes（mm）	Throat Death (mm)	Open Height (mm)	Motor Power （kw）	Dimension (L x W x H) (m)
HTC Pro	/	A	B	C	D	E	/	/
40T1600	400	1600	1250	150	300	420	4	2.01.82.4
63T2500	630	2500	1960	150	320	420	5.5	2.91.82.4
100T3200	1000	3200	2600	200	400	480	7.5	3.91.92.6
100T4000	1000	4000	3200	200	400	480	7.5	4.61.92.7
125T3200	1250	3200	2600	200	400	480	11	3.91.92.6
160T3200	1600	3200	2600	200	400	480	11	3.91.92.6
200T3200	2000	3200	2600	200	400	480	15	3.91.92.7
300T4000	3000	4000	3200	200	400	480	22	4.82.13.2
500T6000	5000	6000	4900	320	500	600	37	6.52.84.5
The above data is only for reference only,to prevail in kind. More specifications available. Please click here!
